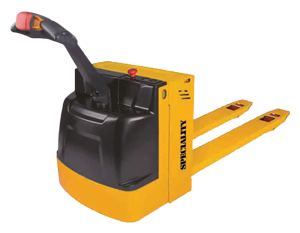

Electric Pallet Truck - CBD20H

Load Capacity is 2000kg.

Brushless DC motor drive, convenient to control.

Mechanical steering.

Regenerative and electro-magnetic service brake, which allows safe and reliable brake and prolongs the life time.

Side way battery with roll out system is very convenient to replace batteries.

Entry roller allows convenient working.

High efficiency motor keeps long time continuous work and is energy saving and environmental.

Travel speed under laden arrives at 5KM/H, 6% maximum gradeability.

With nice looking, not exposed balanced wheel is more safe.

Model		CBD20H(walking)	CBD20H(standing)
Load capacity	Q(kg)	2000	2000
Load center	c(mm)	600	600
Load distance	x(mm)	820/870/940	820/870/940
Fork height, lowered	h13(mm)	85	85
Service weight(with battery)	kg	500	550
Tyre size, front	mm	Φ250×80	Φ250×80
Tyre size, rear	mm	Φ80×70	Φ80×70
Additional wheels(dimensions)	mm	Φ114×60	Φ127×57
Wheels,number front rear(x=driven wheels)		1X+2/4	1X+2/4
Max. lift height	h3(mm)	120	120
Height of tiller in drive position min./max	h14(mm)	850/1200	1120/1320
Overall length	l1(mm)	1695/1745/1815	1737/1787/1857
Length to face of forks	l2(mm)	595	637
Overall width	b1(mm)	765	773
Fork dimensions	s/e/l(mm)	53/180/1100(1150/1220)	53/180/1100(1150/1220)
Width overall forks	b5(mm)	520/550/650/685	520/550/650/685
Aisle width for pallets 1000×1200 crossways	Ast(mm)	1895/1945/2015	1937/1987/2057
Aisle width for pallets 800×1200 crossways	Ast(mm)	1995/1995/2015	2037/2037/2057
Turning radius	Wa(mm)	1400/1450/1520	1577/1627/1697
Travel speed, laden/unladen	Km/h	5/5.1	6/6.1
Battery voltage, nominal capacity K5	V/Ah	24/165(210)	24/165(210)
Battery weight	kg	170 (196)	170 (196)
Battery dimensions l/w/h	mm	750x170x474(534)	750x170x474(534)
