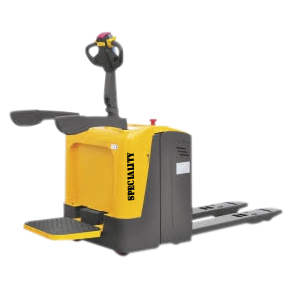

The Ride type CBD-R (2000/2500kg) with small turning radius and super light steering system. Widely used in Narrow Space like small market and narrow workshop.
Standard features:
Germany FREI Tiller Hand
Emergency stop & belly button
BDI and hour meter
Casters to balance stability
Industrial battery
Brushless AC motor
Vertical driving wheel
Sideway battery change
Built-in Charger (option)
Platform with speed sensor
Model |
CBD20R-I |
CBD25R-I |
|
Drive type |
electric |
electric |
|
| Operation type | standing |
standing |
|
Load capacity |
Q(kg) |
2000 |
2500 |
Load centre distance |
c(mm) |
600 |
600 |
Fork height,lowered |
h13(mm) |
85/80 |
85/80 |
Wheelbase |
y(mm) |
1302/1352/1422 |
1302/1352/1422 |
Tyres |
polyurethane |
polyurethane |
|
Tread,front |
b10(mm) |
490 |
490 |
Tread,rear |
b11(mm) |
340/370/470/505 |
340/370/470/505 |
Max.lift height |
h3(mm) |
195/205 |
195/205 |
Overall length |
l1(mm) |
1823/1873/1943 |
1823/1873/1943 |
Length to face of forks |
l2(mm) |
723 |
723 |
Overall width |
b1(mm) |
733 |
733 |
Fork dimensions |
s/e/l(mm) |
53x180x1100(1150/1220) |
53x180x1100(1150/1220) |
Width overall forks |
b5(mm) |
520/550/650/685 |
520/550/650/685 |
Ground clearance,centre of wheelbase |
m2(mm) |
30 |
30 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2135/2185/2255 |
2135/2185/2255 |
Aisle width for pallets 800×1200 crossways |
Ast(mm) |
2235/2235/2255 |
2235/2235/2255 |
Turning radius |
Wa(mm) |
1700/1750/1820 |
1700/1750/1820 |
Travel speed,laden/unladen |
Km/h |
6.7/6.8 |
6.7/6.8 |
Lift speed,laden/unladen |
m/s |
0.03/0.032 |
0.03/0.032 |
Lowering speed,laden/unladen |
m/s |
0.032/0.03 |
0.032/0.03 |
Service brake |
regenerative |
regenerative |
|
Battery voltagem,nominal capacity K5 |
V/Ah |
24/240 |
24/240 |
Battery weight |
kg |
240 |
240 |
Service weight(with battery) |
kg |
720 |
720 |
